KU 10-30

Special Features:
Input frequency:
Low band: 10.7 to 11.7GHz
High band: 11.7 to 12.75GHz
Output frequency:
Low band: 950 to 1950MHz
High band: 1,100 to 2,150MHz
Local oscillator frequency:
Low band: 9.75GHz
High band: 10.6GHz
Local oscillator tolerance: 2MHz(-40 to +60)
Noise figure: 0.5dB(typical)
Conversion gain: 58 to 62dB
Band select control:
Low band: 0Hz
High band: 22kHz± 4kHz
V/H select:
Vertical: 11.5 to 14V DC
Horizontal: 16 to 19V DC
DC current consumption: 150mA(maximum)
Operating temperature: -40 to +60 degrees
40mm Feed-Diameter

          Price VAT included 7,00 Ls / 10 Eur

         GI-101

Golden Interstar Circular Single GI-101 Supreme

Golden Interstar Circular Single GI-101 Supreme is a collection of high performance, high-end LNB's, featuring an innovative stylish, compact and easy to install. One of the best single LNB's on the market, with an outstanding low noise figure of 0,2dB and amazingly high reliability.This single LNB will give you perfect reception and will last for a long time.

Features:
Input  Band: 11.75 - 12.75GHz
L.O. Frequency High Band: 10.75G
Noise Figure High/Low Band: 0,2dB
Conversion Gain: 50dB (min)
Weather Protected Housing
40mm Feed-Diameter

           Price VAT included 8,00 Ls / 11,38 eur

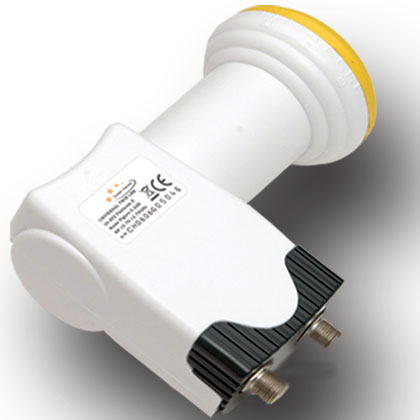

               GI-202 TWIN

                                         Konvertors diviem neatkarīgiem lietotājiem. Iejošo  frekvenču     diapazons ir 10,7 – 12,75  GHz, izejošo frekvenču                             diapazons  9.75/10.60 GHz,trokšņu līmenis 0.1 dB,                           Stiprinājums 40mm. Konektoru aizsarzdība pret nokrišņiem.

                        Price VAT included 17,00 Ls /24,18 Eur

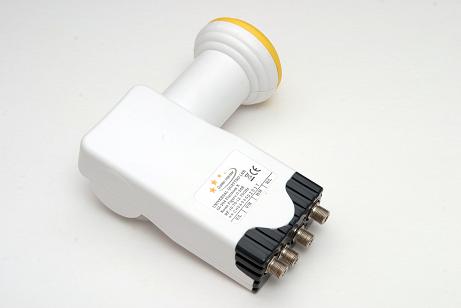

                  GI-204 QUADRAL

         Konvertors četriem  neatkarīgiem lietotājiem. Iejošo                      frekvenču  diapazons ir 10,7 – 12,75  GHz, izejošo frekvenču            diapazons   9.75/10.60 GHz,trokšņu līmenis 0.1 dB,                          Stiprinājums 40mm. Konektoru aizsarzdība pret                                 nokrišņiem

                   Price VAT included 28,00 Ls /39,84 Eur
